Controlling the temperature of saturated steam does not have to be complicated. With the acquisition of the Burling Valve regulator brand, Proportion-Air secured an excellent opportunity to help improve how the manufacturing industry controls the temperature of saturated steam. Control valves will always have a place in manufacturing, but steam regulators are the future of saturated steam control valves.

Proportion-Air saturated steam control valves and regulators control pressure. Since the pressure of saturated steam is directly related to its temperature…we simply control temperature.

Advantages of Steam Regulators over Traditional Control Valves

Less Expensive

Initial & lifetime cost is (generally) less with steam regulators compared to traditional control valves.

Less Maintenance

The easy in-line maintenance of the Burling Valve steam regulator requires much less downtime.

On-Board Analog Comparator

No PID tuning required (with electronic control option). Command to pressure & temp. is achieved.

Better Control

Steam regulators are much quicker to temperature at start-up and much more stable during your process.

Time for a Change

For decades, controlling the temperature of saturated steam has been complicated, expensive and extremely inefficient. Imagine if your saturated steam control valves could:

  • Achieve temperature 75% faster at start-up
  • Be more accurate and stable during your process
  • Easily be repaired without removing the valve from the line – limiting downtime
  • Be installed and controlled without requiring complicated PID tuning

How do Proportion-Air & Burling Valve improve your steam control process?

  • It’s simple: We work with physics instead of working around it. We control the pressure of saturated steam because the pressure of saturated steam is directly related (predictable & repeatable) to the temperature of saturated steam.

Video: Larry Brown discusses steam temperature control

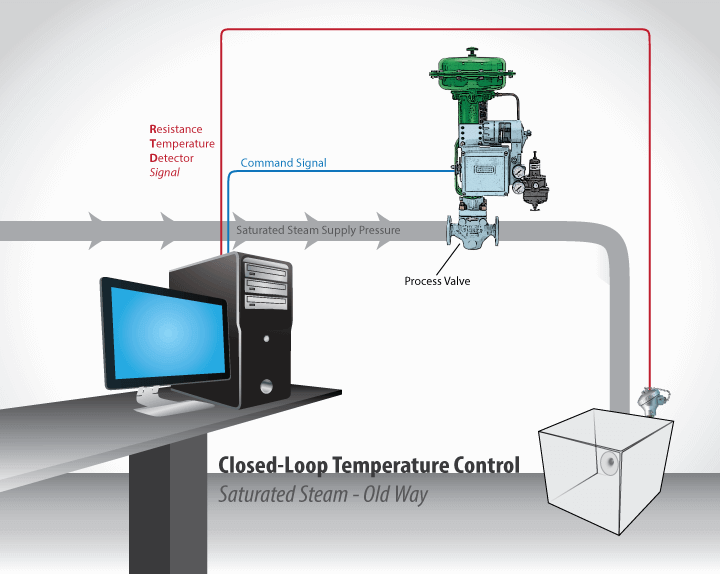

Traditional Method

Temperature achieved in 45 minutes

Preferred Method

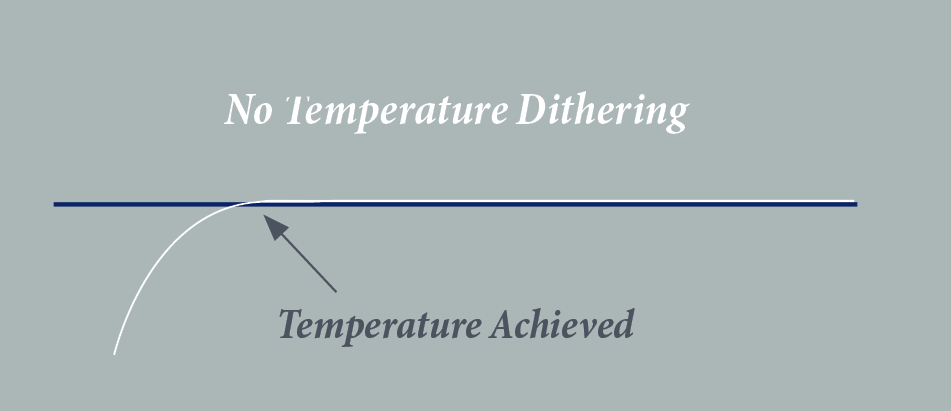

Temperature achieved in 10 minutes

Proportion-Air & Burling Valve steam regulators are available in a variety of mechanical and electronic control types and configurations

Pressures
up to 400 PSI (28 Bar)
Body Sizes
1/2″ to 4″ with the option of 6″ & 8″ Flanges
Temperatures
up to 450°F (232°C)

Mechanical Control Types & Configurations

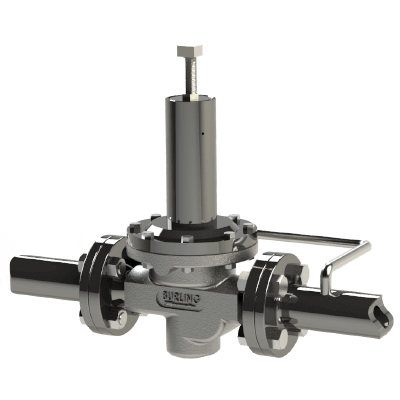

BS1 Series

Direct Operated (Spring)
Internally or Externally Sensed
Accuracy: ± 7 PSI

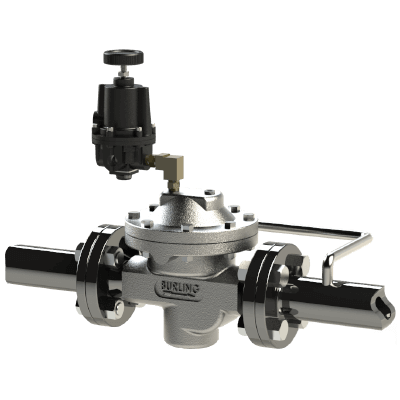

BD3 Series

Dome-Loaded with Manual Air Pilot
Internally or Externally Sensed
Accuracy: ± 1-2 PSI

BD7 Series

Dome-Loaded with Steam Pilot
Accuracy: ± 0.1 to 0.2 PSI

Electrical Control Types & Configurations

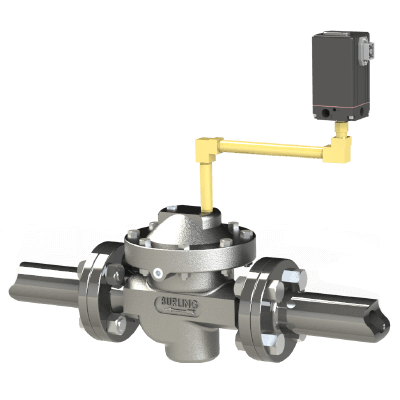

BD4 Series

In single-loop configuration, the electronic pilot controls pressure to the dome of the BD steam regulator. As the diaphragm forces equal out, the pressure in the main line is controlled.

However, the electronic controller does not know the pressure in the main line and cannot adjust to leaks, backpressure and mechanical deficiencies.

Accuracy: ± 2-4%

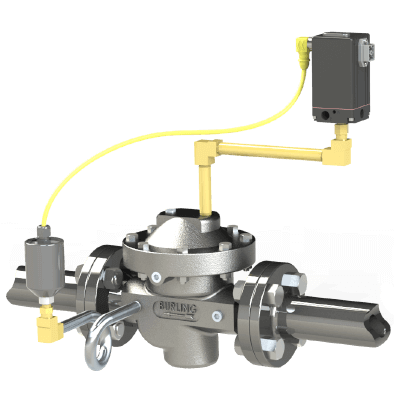

BD4 Series

With dual-loop control, the electronic pilot controls pressure to the dome of the BD steam regulator. As the diaphragm forces equal out, the pressure in the main line is controlled.

But, instead of sensing pressure in the dome, a 2nd-loop is added that senses pressure in the main line and allows the electronic regulator to compensate for leaks, backpressure and any mechanical deficiencies.

Accuracy: ± 0.5%

Easy In-Line Maintenance

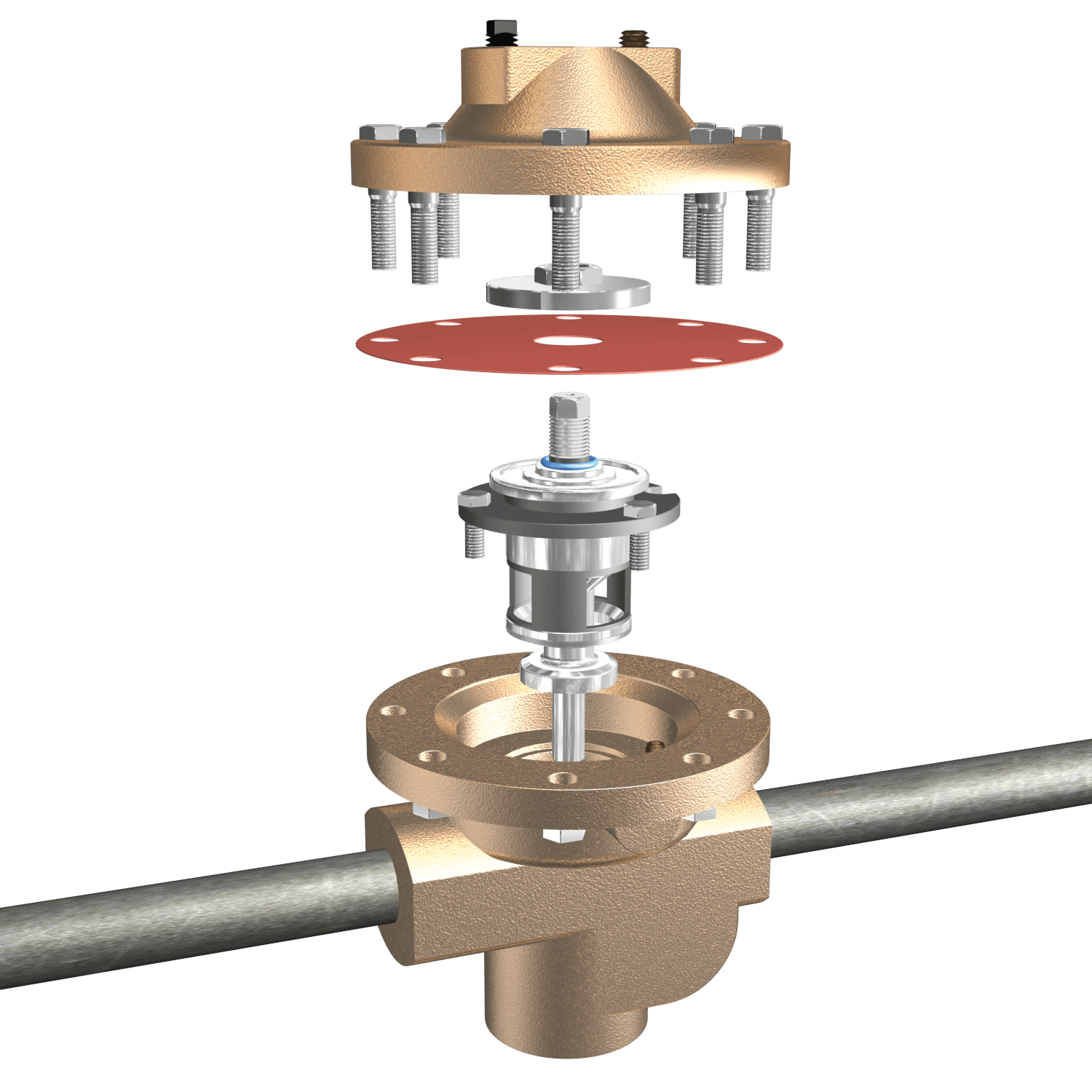

All of the internal components can be easily replaced without removing the valve from the pipeline. This allows for much greater online productivity.

  • Top Entry
  • Quick-Change Trim
  • No Disturbing the Pipline

Download Steam Brochure
